Technical parameters:
Flow rate, l/min [gpm] 68 [20]
Max. working pressure, bar [psi] 207 [3000]
Fluid temperature, °C (°F) -25 to +80 [-13 to 176]
Viscosity range, mm2/s [cSt] 12-100 [12-100]
Filtering, ISO 4406 βx=75 20/17/25μm
Weight, kg [lbs] 2,5 [5.5]
Download detailed description

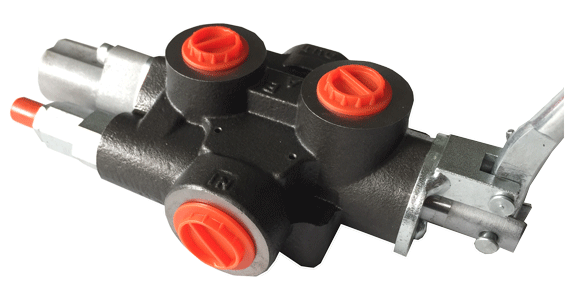

Description: Features: Small and compact to fit your design requirements. Low pressure losses. Positive metering in either direction with manual handle. Precision ground chromium plated spool that assures long life.
