B30
| Parameter | Value |
|---|---|
| Nominal Flow Rating | 30 (50)l/min 7.9 (13.2)gpm |
| Max. Pressure | 315bar 4600psi |
| Max. Number of Sections | 10 |
| Pitch | 47mm 1.85inch |
Simple compact and heavy duty design 1 to 10 sections.
- Steel and aluminum inlet and outlet sections, available in several configurations
- Cast iron working sections
- Different types of spools
- Different options to be flanged on the workports side
- Available in parallel and series circuits
- On/off solenoids controls
- Proportional solenoids controls
- Emergency handlever available.
Applications

Industrial vehicles

Material handling

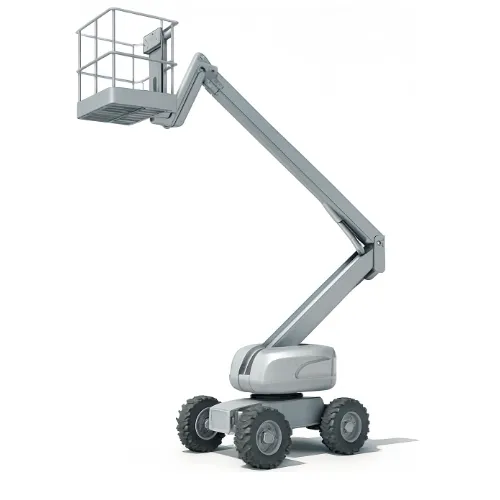

Boom lift
