| No. of available sections |
up to 6 |
| Nominal flow rating |
60 l/min [16 US gpm] |
| Max operating pressure |
315 bar [4500 psi] |
| Internal leakage(max.) A(B) to T , TΔp = 100 bar (1450 psi) fluid and valve at 40 C (104F) |
5 cm3/min [0.31 in3/min] |
| Fluid temperature Ambient (with NBR seals) |
-20C to 80C [-4F to 176F] |
| Viscosity (operation range) |
15 to 75 mm2/s [15 to 75 cSt] |
| Max contamination level |
-/19-16 - ISO 4406 NAS1683 - class10 |
| Ambient temperature |
-40C to 60C [-40F to 140F] |
| Tie rods tightening torque (wrench 13) |
15 Nm [11lbft] |
|
 |

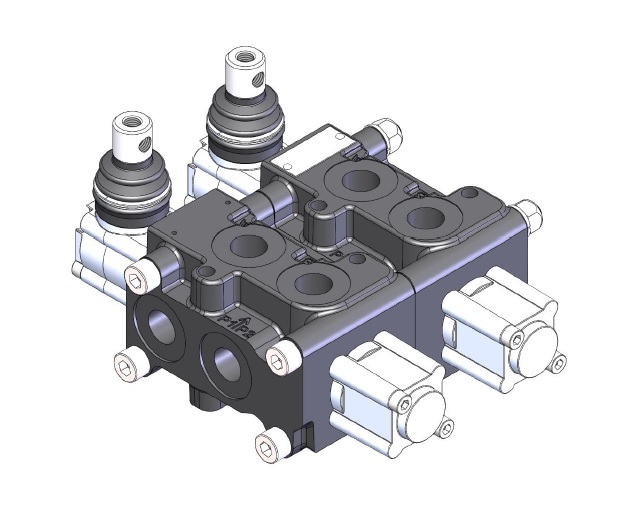

Description: Simple compact and heavy duty designed with cast iron body and hard plated
steel spool. 6/2 with two different options spool for open centre transition and
closed centre transition. Flow rate up to 60 l/min, max pressure up to 315 bar
and stackable up to 6 sections.
