| No. of available sections |
up to 4 |
| Nominal flow rating |
90l/min [23.8 US gpm] |
| Operating pressure (max) |
315bar [4500psi] |
| Internal leakage (max) A(B) to T, TΔp = 100 bar (1450 psi) fluid and valve at 40 C (104F) |
5 cm3/min [0.31 in3/min] |
| Fluid temperature (with NBR seals) |
-20 C to 80 C [-4 F to 176 F] |
| Viscosity (operation range) |
15 to75 mm2/s [15 to 75 cSt] |
| Max contamination level |
-/19/16-iso 4406 [NAS 1683 - class10] |
| Ambient temperature |
-40 C to 60 C [-4 F to 140 F] |
| Tie rods tightening torque (wrench 13) |
25Nm [18.4 lbf] |
|
 |

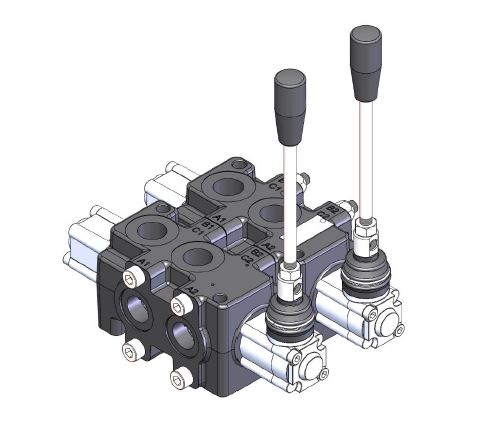

Description: Simple compact and heavy duty designed with cast iron body and hard plated
steel spool. 6/2 with two different options spool for open center transition and
closed center transition. Flow rate up to 90 l/min, max pressure up to 315 bar
and stackable up to 4 sections.
